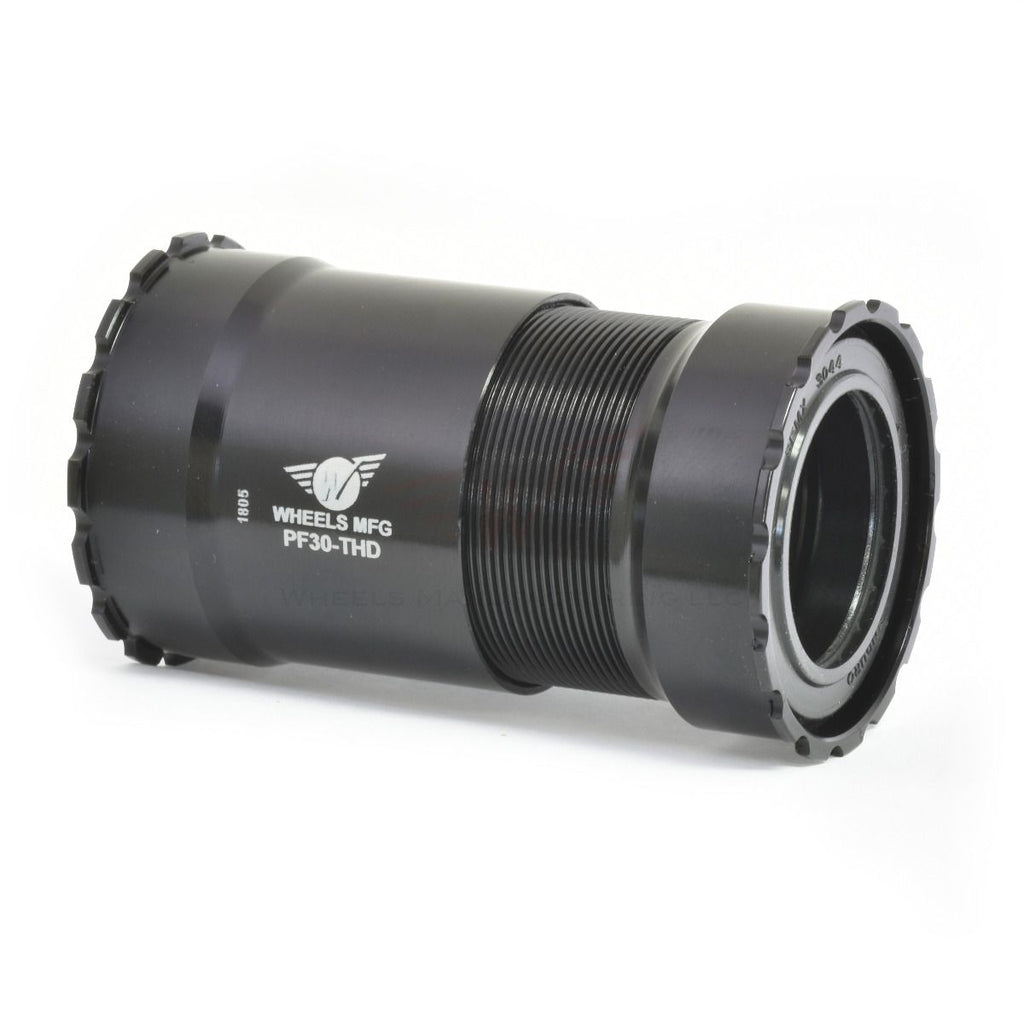

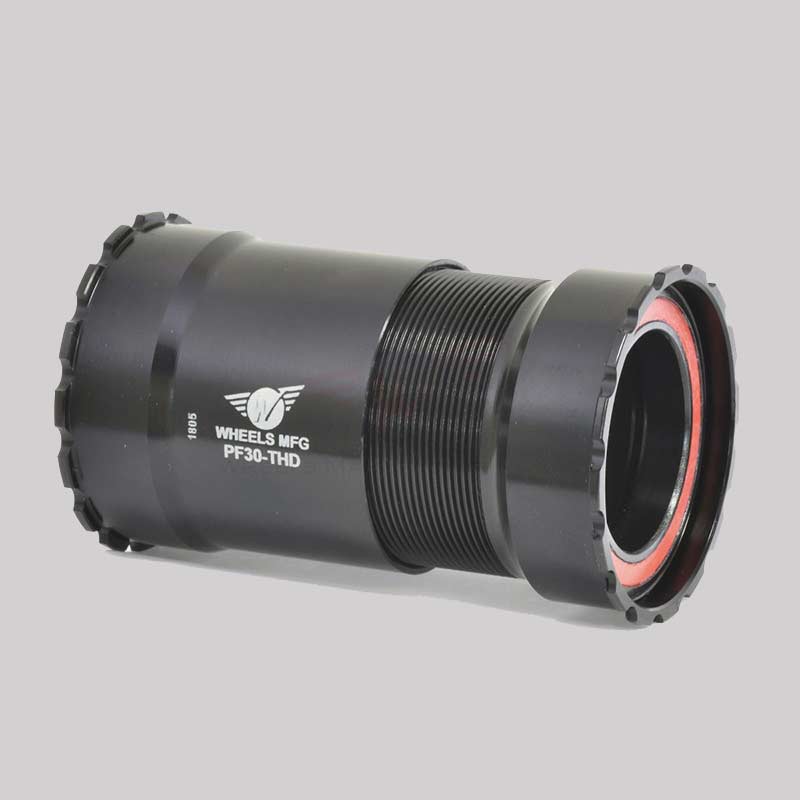

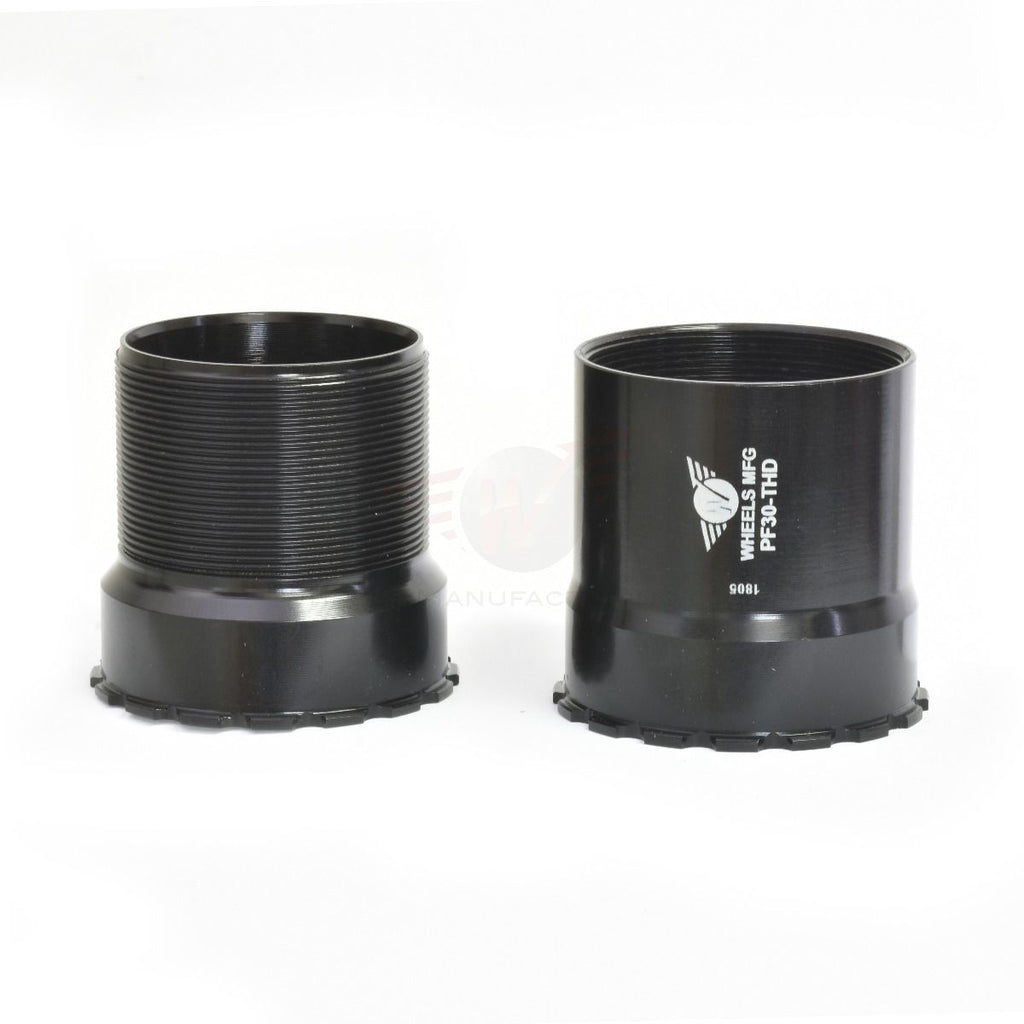

Wheels Manufacturing PF30 Threaded Angular Contact BB (Black)
Description
- Bearings: Angular Contact Steel Bearings
- Color: Black
- Bottom Bracket/Frame Interface: PF30, BBRight™ Press Fit, Specialized Carbon OSBB*
- Bottom Bracket Shell Width: 61mm* to 79mm
- Bottom Bracket Shell I.D.: 46mm
- Over Bearing Width: 68mm in 68mm wide shell
- Crank Spindle Diameter: 30mm
- Weight: 106g
- Packaged for retail display
- Will accept 24mm and 24/22mm cranksets using Wheels Mfg. adapter shims

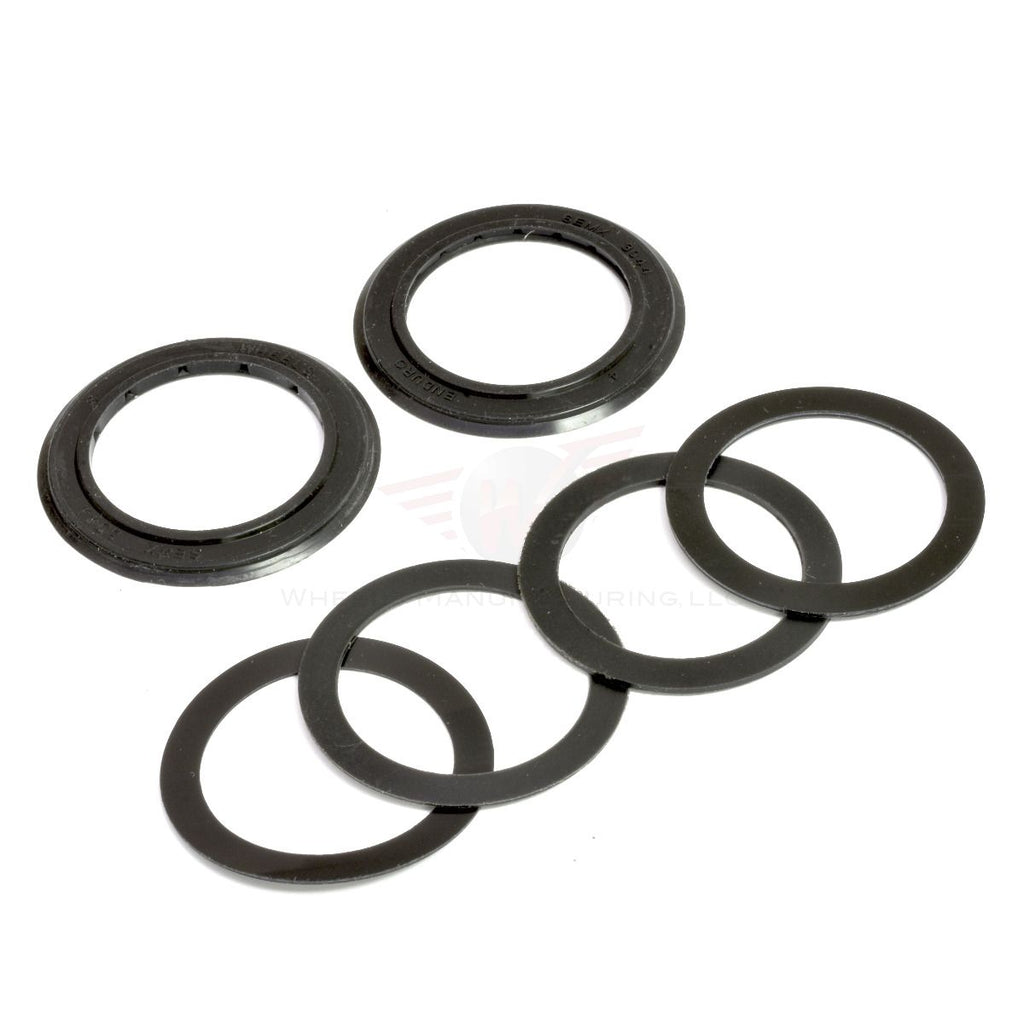

* Specialized Carbon OSBB with 61mm shell width will need additional cup spacers. - Over Bearing Width Dimensions include supplied silicone dust shields Compatible with the following Bottom Bracket Standards (46mm BB shell inner diameter):
- PF30
- Cannondale PF30A
- BBRight™ Press Fit
- Specialized Carbon OSBB. May need additional cup spacers if BB shell width is 61mm.
Compatible with 30mm spindle diameter cranksets. DOWNLOAD: PF30-THD THREAD TOGETHER INSTALLATION / SERVICE
