Name: Wheels Manufacturing BB30 Outboard Angular Contact BB for 24mm Cranks (Shimano) - Black
Brand: Bikes & Bites
SKU: BNB-0000047926
Price: 256.00 SGD
Availability: OutOfStock

1/5

Wheels Manufacturing BB30 Outboard Angular Contact BB for 24mm Cranks (Shimano) - Black

$256.00

Shipping calculated at checkout.

Bearings: Enduro Angular Contact
Color: Black
Bottom Bracket/Frame Interface: BB30, Specialized Alloy OSBB
Bottom Bracket Shell Width: 68mm - 73mm
Bottom Bracket Shell I.D.: 42mm
Over Bearing Width: 90.5mm in 68mm wide shell*
Crank Spindle Diameter: 24.00mm
Tool Pattern: 44mm, 16-notch
Weight: 127g

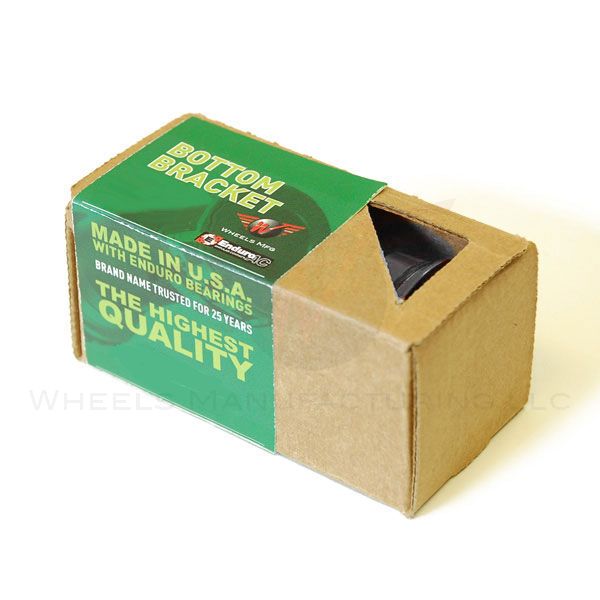

Packaged for retail display

* Over Bearing Width Dimensions include supplied silicone dust shields. Compatible with the following Bottom Bracket Standards (42mm BB shell inner diameter):

BB30
Specialized Alloy OSBB.

Compatible with 24.00mm spindle diameter cranksets.* *Note: FSA MegaExo spindles can be between 24.00mm and 24.07mm in diameter. If your FSA spindle is 24.07mm, this BB will not work! You will need to swap the bearings with our FSA 24.07x37 ceramic hybrid bearings. DOWNLOAD: BB30-OUT FOR 24MM SPINDLE (SHIMANO) INSTALLATION / SERVICE
