ENVE INDR PRO Freehub Body

Only compatible with INNERDRIVE PRO hubs.
Not compatible with standard INNERDRIVE hubs

(Well technically, see Elite Tech notes below for more info)

--------------

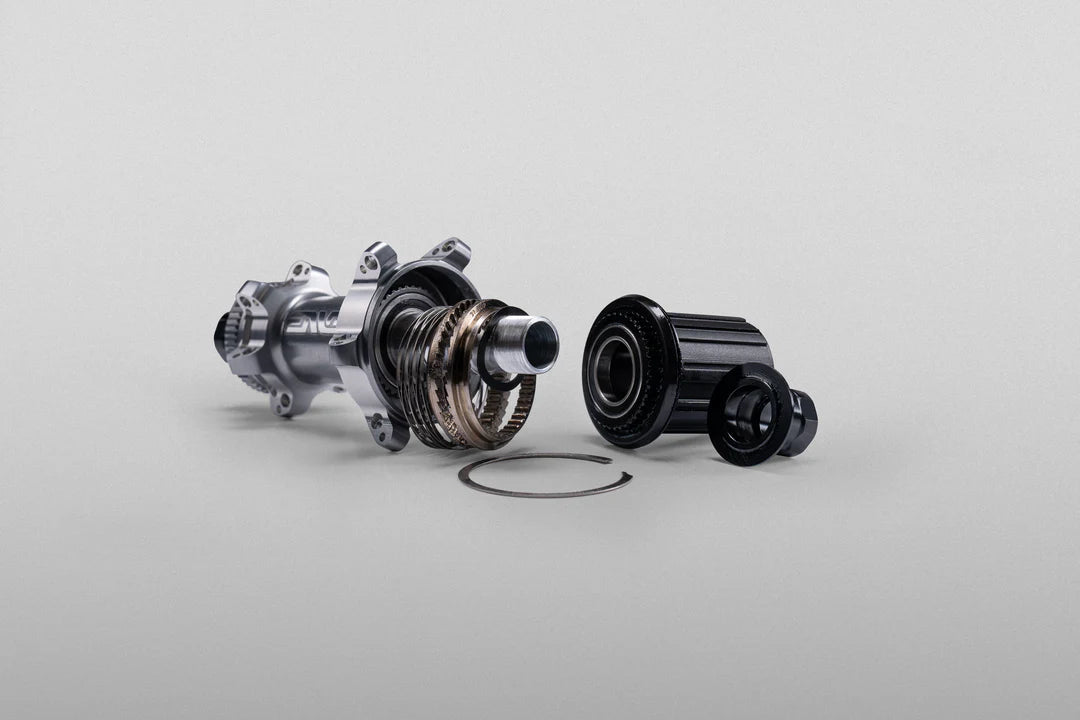

Conversion Kit consists:

- PRO Freehub Body - Includes (2) CERAMIC bearings in Freehub body. (Installed)
- Drive-side end cap
- Rubber Seal

--------------

Please note this Freehub conversion is only for the new PRO InnerDrive (INDR PRO).
It is NOT compatible with the older Enve ID360 hubs and not compatible with non PRO innedrive hubs.

If you aren't sure which hubs you have, drop us a pic at info@elitecustom.sg

A quick way to tell is;

ID360 Hubs = J-Bend
INDR Hubs = Straight-Pull and Black
INDR PRO Hubs = Straight-Pull and Silver


--------------
<Elite Tech Notes>

What if I want to use a Pro freehub on a non Pro hub? or a standard freehub on a PRO hub?

- Using a non-PRO freehub on a PRO hub will require the blue spacer.
- Using a PRO freehub on a PRO hub will not require a blue spacer.
- Using a PRO freehub on a non-pro hub will not require a blue spacer.


Enve PRO Innerdrive Installation

To open rear hub, use (2) 18mm socket wrenches.
We do not recommend using a vice clamp or spanners as they may damage the end caps.

Ensure parts are clean before installation to prevent any contamination with hub internals.

1) Rubber seal has a direction.
2) Sit the seal nicely, but do not overlap the lip of the freehub.
3) Greasing the seal lightly with a brush helps with installation and longevity.

Please reference diagrams in this listing before installation.

Post installation check:
Freehub should be smooth.
If draggy, likely seal is not installed properly.
